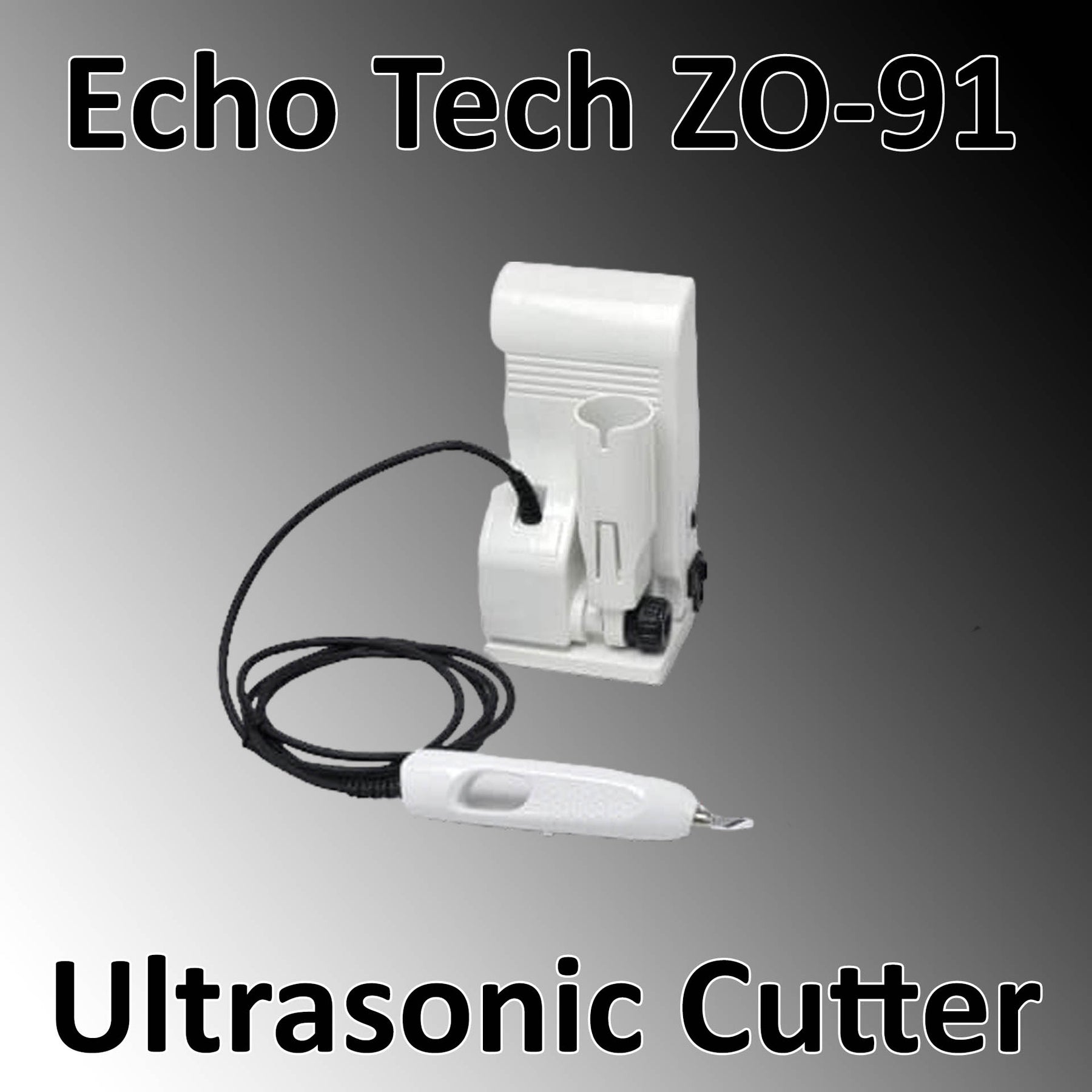

Echo Tech ZO-91 Ultrasonic Cutter
- Low stock - 1 item left
- Inventory on the way
The ZO-91 is a great entry level ultrasonic cutter. This cutter makes opening lights a breeze yet has a price tag that makes it within reach of the weekend hobbyist. Compatible with our entire lineup of Echo Tech parts this little cutter has a ton of versatility.
CUT PLASTIC LIKE BUTTER!!
***Ultrasonic cutter is a tool, helps you cutting tough materials that needs power to cut.***
The blade of Ultrasonic cutter is vibrated in ultrasonic frequency by internal ceramics transducer.
40,000 cycle per second (40 kHz) assists your smooth cut.
Usage examples (reference)
-Thickness: 3 mm maximum
-Plastic scale models, military models, railway models, mini4WD, figure, dioramas, dollhouse, gourd hole drilling, cartonnage, cardboard craft, deburring in garage kit production, printed circuit board pattern modification, white metal and wood cutting in sailing ship model making.
Features
Specifications
| Oscillation | 40kHz |
|---|---|
|
External dimensions
(Unit: mm)
|
Main unit (Generator): 173 × 89 × 76 (excluding protrusions) Hand-piece: φ32 × 144 (including blade) |
| Weight | Main unit (Generator): Approx. 300 g Hand-piece: Approx. 70g (including hand-piece cable) |
| Hand-piece cable | 1.6 m (straight cable) |
| Max. power consumption | Max. 85 VA |
| Power Source | AC adapter INPUT: 100 – 240 VAC 50/60 Hz OUTPUT: 12 VDC |
| Circuit protection | The temperature sensor has installed inside the hand-piece |
| Ambient temperature | Temperature: 10 to 35℃ (No condensation) |
| Accessories | Standard blade (HA04): 1 pack (40 pcs./pack) Blade anchor (ZH04): 1 pc. Blade anchor screw (HB03): 3pcs. Hexagon wrench (RR02): 1 pc. |
Ultrasonic cutters are sharp and may cause injury if not used properly. Users are responsible to read the user manual fully and ensure that they are operating cutters safely. Next Level Neo is not responsible for any injuries incurred while using any ultrasonic cutters.
