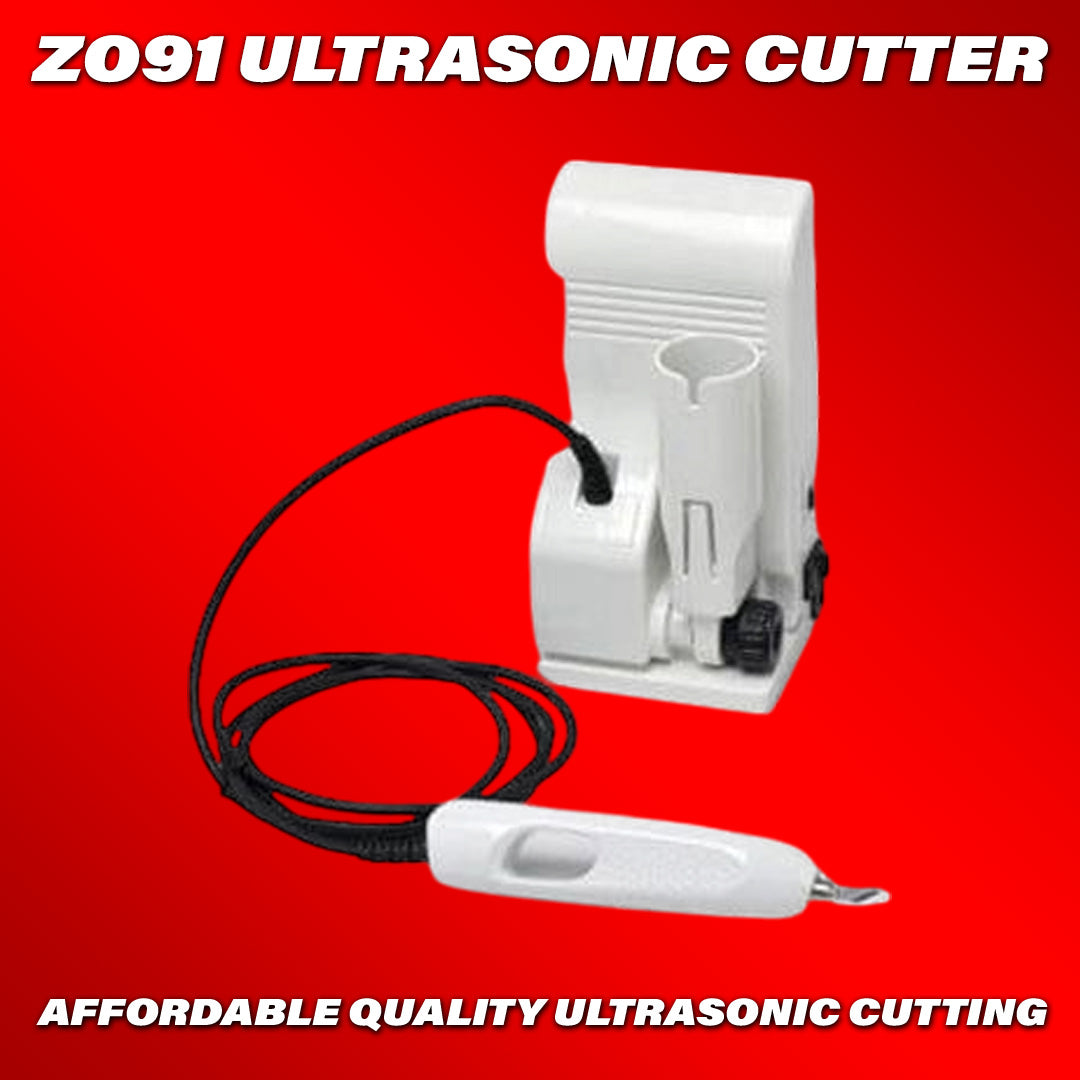

Echo Tech ZO-91 Ultrasonic Cutter
Echo Tech ZO-91 Ultrasonic Cutter

Echo Tech ZO-91 Ultrasonic Cutter

Regular price$450.00
Shipping calculated at checkout.

  • Low stock - 1 item left
  • Inventory on the way

The ZO-91 is a great entry level ultrasonic cutter. This cutter makes opening lights a breeze yet has a price tag that makes it within reach of the weekend hobbyist. Compatible with our entire lineup of Echo Tech parts this little cutter has a ton of versatility.



***Ultrasonic cutter is a tool, helps you cutting tough materials that needs power to cut.***

The blade of Ultrasonic cutter is vibrated in ultrasonic frequency by internal ceramics transducer.
40,000 cycle per second (40 kHz) assists your smooth cut.

Usage examples (reference)

-Synthetic resin, Plastic, Epoxy putty, Paper/cardboard, Chemical fiber/cloth, polyester putty, Object made by 3D printer, Silicone etc.
-Thickness: 3 mm maximum
-Plastic scale models, military models, railway models, mini4WD, figure, dioramas, dollhouse, gourd hole drilling, cartonnage, cardboard craft, deburring in garage kit production, printed circuit board pattern modification, white metal and wood cutting in sailing ship model making.


-Just one click operation.
 (No more holding down the hand-piece switch.)
-Normal mode and High mode can be switched by the output mode switch.
-Normal mode runs for about 10 minutes.
-High mode runs for about only 5 minutes due to rapid temperature rise.
-A temperature sensor is equipped inside of the hand-piece.
 (In case the temperature rises, it stops the ultrasonic vibration and oscillation light blinks.)
-Automatic output control by TAF circuit, our unique technology.
 (TAF oscillation circuit enables the most suitable output and vibration for cutting.)
-There are around 30 types of replacement blades.
 (Such as curving blade, flat blade, long blade, filing plate(electrodeposited diamond) etc.)



Oscillation 40kHz
External dimensions
(Unit: mm)
Main unit (Generator): 173 × 89 × 76 (excluding protrusions)
Hand-piece: φ32 × 144 (including blade)
Weight Main unit (Generator): Approx. 300 g
Hand-piece: Approx. 70g (including hand-piece cable)
Hand-piece cable 1.6 m (straight cable)
Max. power consumption Max. 85 VA
Power Source AC adapter INPUT: 100 – 240 VAC 50/60 Hz OUTPUT: 12 VDC
Circuit protection The temperature sensor has installed inside the hand-piece
Ambient temperature Temperature: 10 to 35℃ (No condensation)
Accessories Standard blade (HA04): 1 pack (40 pcs./pack)
Blade anchor (ZH04): 1 pc.
Blade anchor screw (HB03): 3pcs.
Hexagon wrench (RR02): 1 pc.


Ultrasonic cutters are sharp and may cause injury if not used properly. Users are responsible to read the user manual fully and ensure that they are operating cutters safely. Next Level Neo is not responsible for any injuries incurred while using any ultrasonic cutters.
