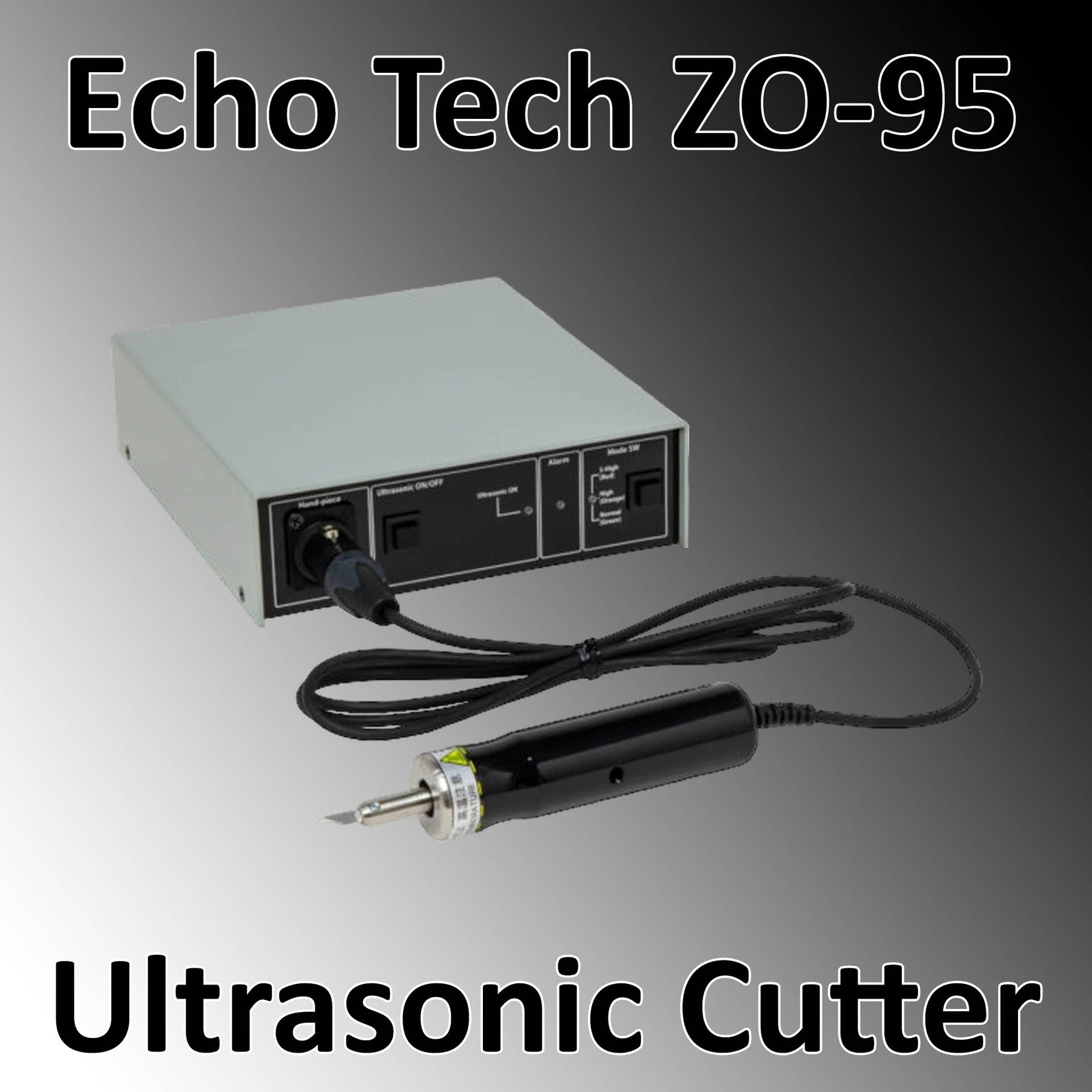

Echo Tech ZO-95 Ultrasonic Cutter
Echo Tech ZO-95 Ultrasonic Cutter

Echo Tech ZO-95 Ultrasonic Cutter

Regular price$1,100.00
/
Shipping calculated at checkout.

  • Low stock - 4 items left
  • Inventory on the way

The ZO-95 is for the builder needing a little more time and power between cool down cycles. This cutter makes opening lights a breeze, Extended cutting times is not a problem with the beefy horn and the addition of the S-High cutting mode makes cutting even faster. Compatible with our entire lineup of Echo Tech parts this cutter has a ton of versatility.



Ultrasonic cutter ZO-95/CE product



“S-High mode” works to cut the object 1.5 times faster than the conventional model.*1

ZO-95 attaches,
Torque screwdriver ZH25T and Foot switch ZH801 (foot switch for ZO-95).

(Torque screwdriver ZH25T)     (Foot switch ZH801)


Plug into the connector on the rear panel of ZO-95 to turn on and off ultrasonic vibration by the foot switch.



Specifications

Oscillation frequency 40 kHz
Max. power consumption Max. 110 VA
Power Source AC adapter INPUT: 100-240 V AC 50/60 Hz   OUTPUT: 12 V DC
External dimensions (Unit: mm)

Main unit(Generator): 185*169*55

(excluding protrusions)

Hand-piece: φ28*150

(including blade)

Power mode switch S-High/High/Normal
Ambient condition

Temperature: 10 to 35 ℃

(No condensation)*2

Weight

Main unit(Generator): Approx. 1.2 Kg

Hand-piece: Approx. 350g

(including hand-piece cable)

Accessories

BDC-200P: 40 pcs./1 case

(including blades with a hole)

Blade anchor ZH04: 1 pc.

Blade anchor screw HB03: 1 pc.

Hexagon wrench RR02: 1 pc.

Torque screwdriver ZH25T: 1 pc.

Foot switch ZH801: 1 pc.

*1 Based on the comparison with the cutting speed of ZO-91 in High mode when 2mm thick acrylic is cut by the force of 2kgs.

*2 Ambient condition doesn’t guarantee the performance of operation under the temperature.
